Drone

Drones

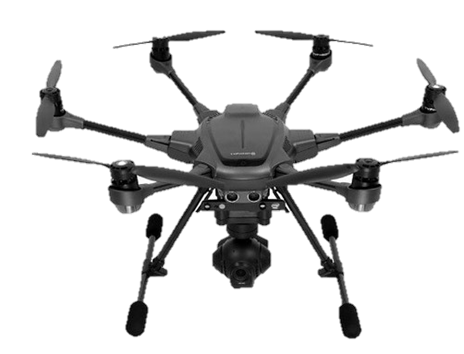

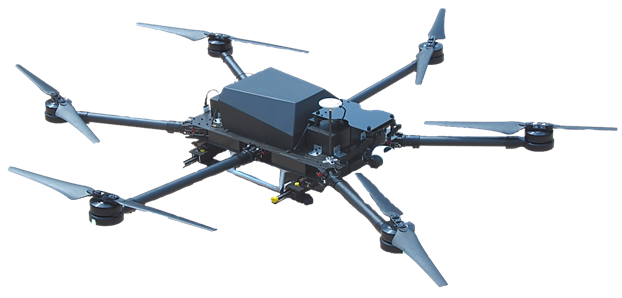

MULTI ROLE DRONE

SPECIFICATIONS

Dimensions

Weight : Less than 18 kg

Width : Less than 2900 mm

Length : Less than 2900 mm

Height : Less than 450 mm

Operations

Weight : Less than 18 kgLithium polymer rechargeable batteries 30 – 35 minutes mission dependent flight time

Pay load : 15.0 kg

Mechanical

Material : Carbon fiber

Compactness : Frame

Frame : Hexa-copter

Integrated sensors

Gyroscope | accelerometers | GPS

Maneuverability

Max speed : 50 km/h

Operational : Water proof

Wind condition : 10 knots

Gust condition : 15 knots

User interface

Fail safes for auto correction in any eventuality

Precision landing | take off | localization

Autonomous take off and landing

Multiple GPS integration | dual IMU redundancy

Integrated GCS application software

Real time video feedback

Geographic map based feedback

Multiple high precision GPS redundancy

Accuracy : cm in air

Technology : Global Navigation Satellite System

Satellite : 18 satellites connectivity

RF transmitter and video relay

Frequency : 2.4 GHZ - 5.8 GHZ

Batteries : Rechargeable

Communication : Encrypted

Range : 5 Km los

Camera and gimbal

Video communication : Real time display

Image : Gimbal 3x stabilized

Camera : 12 Megapixels

Video communication : 4k Real time communication

Pan and tilt control : Pan – 300◦ , Tilt – 90

Interconnected, co operative drones that are capable of working together to overwhelm challenging tasks.

Loud speaker based communication will ensure that any particular information that needs to be conveyed is being able to conveyed without putting soldiers at any unnecessary risk.

125,000 lumen area illumination enables that the drone will be able to illuminate certain areas providing selective illumination and the chance of surprise attack.

Long distance thermal camera integration ensures rigorous scanning of the environment for detection of

Full autonomous motion ensures mission completion even under jamming and other non line of sight communication.

Full 360 degrees coverage independent vibration damped imagery with zoom capability to ensure surveillance and tracking of target.

High precision landing and take off to ensure take off and landing from top of a vehicle and mobile drone take off and landing platforms.

High precision AI enabled system to ensure detection and tracking of suspicious activities.

APPLICATIONS INCLUDE

  • Targeted Impact
  • Coordinated Activity
  • Multiple Coordination

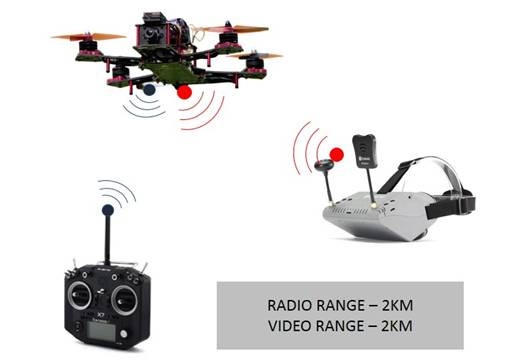

INTERCEPTOR ANTI DRONE

SPECIFICATIONS

DIMENSIONS & WEIGHT

Length : 250 mm

Width : 250 mm

height : 125 mm

Frame : QUAD x frame

: 250 gm ( net catcher )

MANUVERABILITY

Drone Max speed : 150 km/h

RC Max range : 2 km (LOS)

Video range : 2 km

Launch altitude : 1000 m (ASL)

Operating altitude : 100 m

Operating temperature : -10 to 55 deg Celsius

Landing : manual

POWER SUPPLY

Operating voltage : 14.7 – 16.8 VDC

Batteries : li-po batteries

Operation time : 10 minutes

SAFETY SYSTEMS

Failsafe : Failsafe to land

CONTROLS

  • 16 channels RC controlled
  • 2.4 GHz (enhanced encription)
  • Manual Throttle control
  • Servo activating switches
  • On screen display parameters
  • Modes switches
  • Failsafe switches

VIDEO TRANSMISSION SYSTEM

Display unit : FPV goggles

Video transmission : integrated system

Transmitting frequency : 5500 – 6000 MHz

Video quality : 720 p with no latency

Camera : 5 MP front fixed camera

Interceptor drone is a high speed drone with target drone intercepting mechanism. It can intercept an invader drone with the help of net trapping. FPV view can be used for high speed or long distance operation.

User supported flying modes are helpful in controlling the drone through windy condition. Its mechanism can be adjusted for reuse purposes

Live video with Zero lag & clear feed helps to control the drone in tricky areas and monitoring the invader drone motion.

FEATURES

  • Real time video feed with zero lag.
  • Adjustable catcher net.
  • Reception, recording, storage and playback of payload information with real time display
  • Control of manual modes
  • Preparation and upload of the mission
  • Real-time parameters and battery monitoring

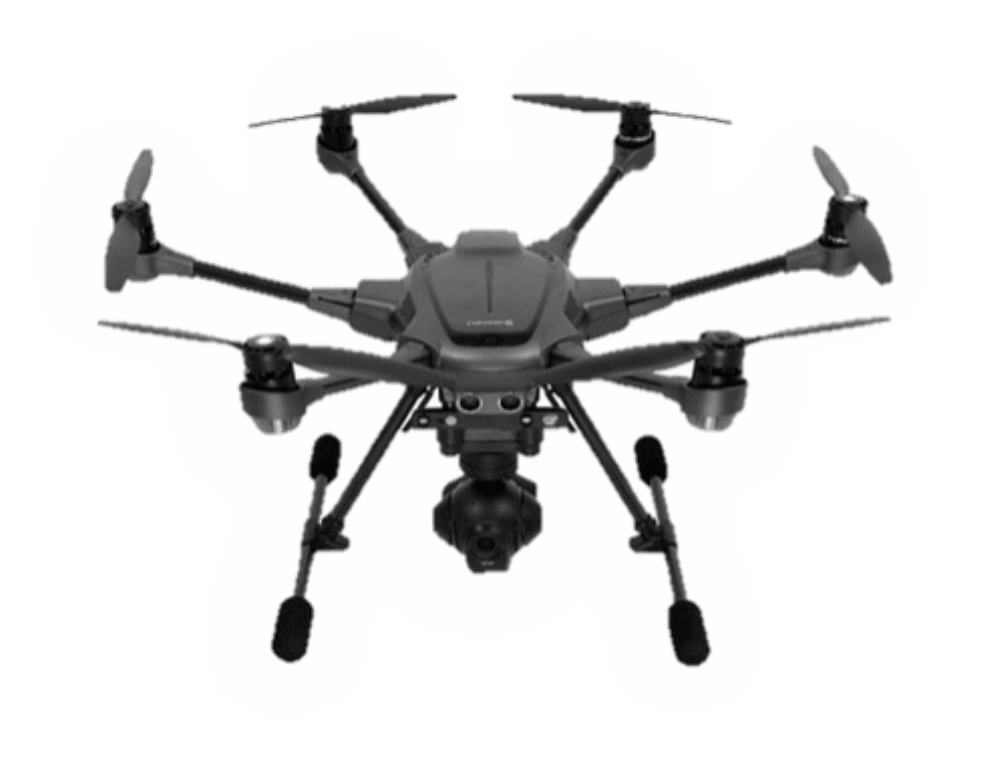

MEDICAL DRONE

SPECIFICATIONS

Dimensions

Weight : Less than 18 kg

Width : Less than 2900 mm

Length : Less than 2900 mm

Height : Less than 450 mm

Operations

Weight : Less than 18 kgLithium polymer rechargeable batteries 30 – 35 minutes mission dependent flight time

Pay load : 15.0 kg

Mechanical

Material : Carbon fiber

Compactness : Frame

Frame : Hexa-copter

Integrated sensors

Gyroscope | accelerometers | GPS

Maneuverability

Max speed : 50 km/h

Operational : Water proof

Wind condition : 10 knots

Gust condition : 15 knots

User interface

Fail safes for auto correction in any eventuality

Precision landing | take off | localization

Autonomous take off and landing

Multiple GPS integration | dual IMU redundancy

Integrated GCS application software

Real time video feedback

Geographic map based feedback

Multiple high precision GPS redundancy

Accuracy : cm in air

Technology : Global Navigation Satellite System

Satellite : 18 satellites connectivity

RF transmitter and video relay

Frequency : 2.4 GHZ - 5.8 GHZ

Batteries : Rechargeable

Communication : Encrypted

Range : 5 Km los

Camera and gimbal

Video communication : Real time display

Image : Gimbal 3x stabilized

Camera : 12 Megapixels

Video communication : 4k Real time communication

Pan and tilt control : Pan – 300◦ , Tilt – 90

Interconnected, co operative drones that are capable of working together to overwhelm challenging tasks.

Loud speaker based communication will ensure that any particular information that needs to be conveyed is being able to conveyed without putting soldiers at any unnecessary risk.

125,000 lumen area illumination enables that the drone will be able to illuminate certain areas providing selective illumination and the chance of surprise attack.

Long distance thermal camera integration ensures rigorous scanning of the environment for detection of

Full autonomous motion ensures mission completion even under jamming and other non line of sight communication.

Full 360 degrees coverage independent vibration damped imagery with zoom capability to ensure surveillance and tracking of target.

High precision landing and take off to ensure take off and landing from top of a vehicle and mobile drone take off and landing platforms.

High precision AI enabled system to ensure detection and tracking of suspicious activities.

APPLICATIONS INCLUDE

  • Targeted Impact
  • Coordinated Activity
  • Multiple Coordination

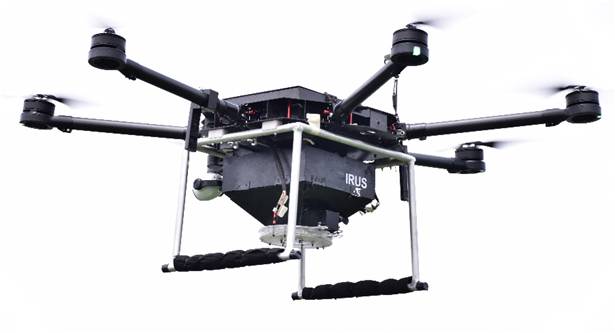

RIOT CONTROL DRONE

SPECIFICATIONS

Dimensions

Weight : Less than 18 kg

Width : Less than 2100 mm

Length : Less than 2100 mm

Height : Less than 250 mm

Operations

Lithium polymer rechargeable batteries 30 – 35 minutes mission dependent flight time

Pay load : 3 kg

Mechanical

Material : Carbon fiber

Compactness : Frame

Frame : Hexa-copter

Integrated sensors

Gyroscope | accelerometers | GPS

Maneuverability

Max speed : 50 km/h

Operational : Water proof

Wind condition : 10 knots

Gust condition : 15 knots

User interface

Fail safes for auto correction in any eventuality

Precision landing | take off | localization

Autonomous take off and landing

Multiple GPS integration | dual IMU redundancy

Integrated GCS application software

Real time video feedback

Geographic map based feedback

Multiple high precision GPS redundancy

Accuracy : cm in air

Technology : Global Navigation Satellite System

Satellite : 18 satellites connectivity

RF transmitter and video relay

Frequency : 2.4 GHZ - 5.8 GHZ

Batteries : Rechargeable

Communication : Encrypted

Range : 5 Km los

Camera and gimbal

Video communication : Real time display

Image : Gimbal 3x stabilized

Camera : 12 Megapixels

Video communication : 4k Real time communication

Pan and tilt control : Pan – 300◦ , Tilt – 90

Munition Dropping Drone- Riot Control Drone is a compact drone with a specific objective to be achieved. It can be used to drop items like tear gas grenade for riot control, flags marching in parade and flower dropping. It can also be used to drop seeds.

Mid air safety pin triggering capability enables the drone to be armed only when necessary ensuring safety at all times.

Flag carrying and flower dropping integration to be used during military drills and other activities.

Seed dropping for variety of terrains with individual and bulk dissemination

15 kg of payload capability ensures that the drone can supply pin pointed medical equipment or supplies to troops to ensure without risking additional.

APPLICATIONS INCLUDE

  • Targeted Impact
  • Autonomous Surveillance Mission
  • Suicidal Autonomous Missions
