Ground Robots

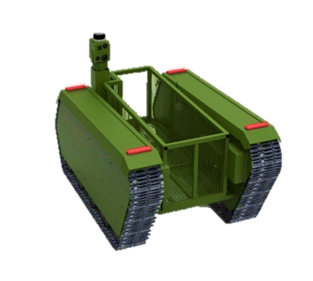

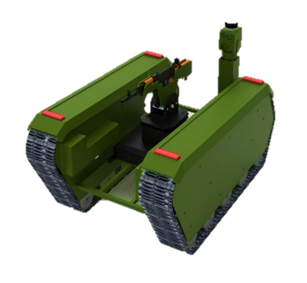

SURVEILLANCE EVACUATION ROBOT
SPECIFICATIONS
Dimensions
Weight: 200 KG
Width: 36 INCH
Length: 60 INCH
Sensors
Day Night Cameras
Thermal Camera
Spectrum Analyzer
Ground Penetrating Radar
LIDAR
Communication
Secure WIFI 2.4 GHz
Military COFDM
Maneuverability
Max Speed: 12 Km/h
Climbing Slope: 45 Degrees
Slide Slope: 30 Degrees
Stair Obstacle Climb: 6 Inch
Reliability
1 year limited warranty
Environmental: IP65
Operation
Lead Acid Rechargeable Batteries
Lithium Ion Rechargeable Batteries Interchangeable
2 – 5 Hours – Mission Dependent
Full Charging time: 3 Hours
Accessories
Robotic Arm
Advanced Surveillance
Evacuation Platform
Gun Turret
Tear Gas Attachment
Payload
400 kg
Accessories
Water Jet | Metal Cutter
User Interface
Touch Pad, RC Controllers
Operation Modes
Autonomous Mode
Follow Me Mode
Manual Mode
Armed Rescue Robot is a heavy weight all terrain unmanned rescue platform capable of evacuation, providing surveillance and providing a versatile multi utility platform in hostile environment.
- It can locate and access injured causalities and ferry them to safety.
- Its armor plating and bullet proof coating ensures that can perform evacuation activities in compromised territories.
- It provides real time, Long range intelligence gathering to keep personnel safe in dangerous situations. It has Day Night cameras along with thermal imagers for a 360 degree view of the environment.
Overall Armed Rescue Robot is perfect to complement troops in
- Reconnaissance
- Casualty Evacuation
- Road Clearance
- Explosive Ordinance Disposal
- Supply of Ammunition
- Room Intervention Operations
APPLICATIONS INCLUDE

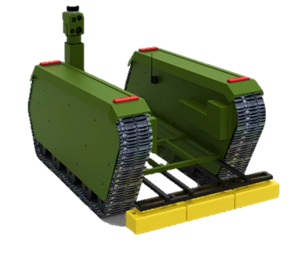

Detection of explosives with the Ground Penetrating Radar( GPR ) attachment.
Armored Plating and Bullet Proof Shielding helps provide cover fire to troops support to move towards dominating or safe grounds in the presence of enemy fire.

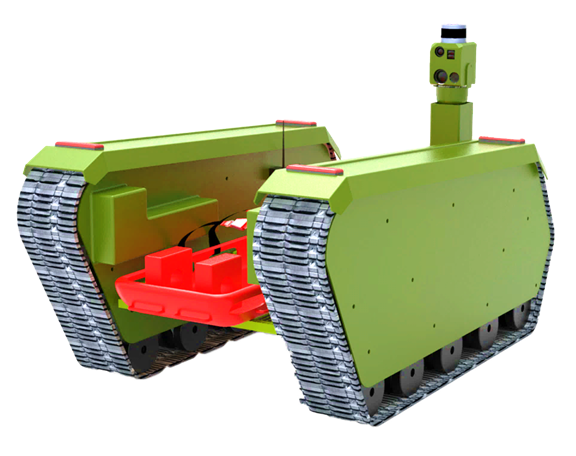

A stretcher attachment for unmanned evacuation of troops from the battlefield.
Real time Audio and Visual Information being streamed back to soldiers. Ideal for exploring hazardous environments.

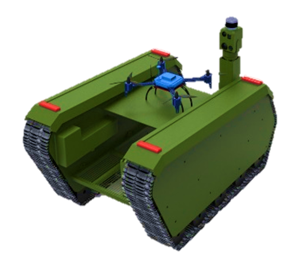

Serves as a remote platform capable of launching drones remotely. The precision landing system ensures that the Drone can land back on its own as well.

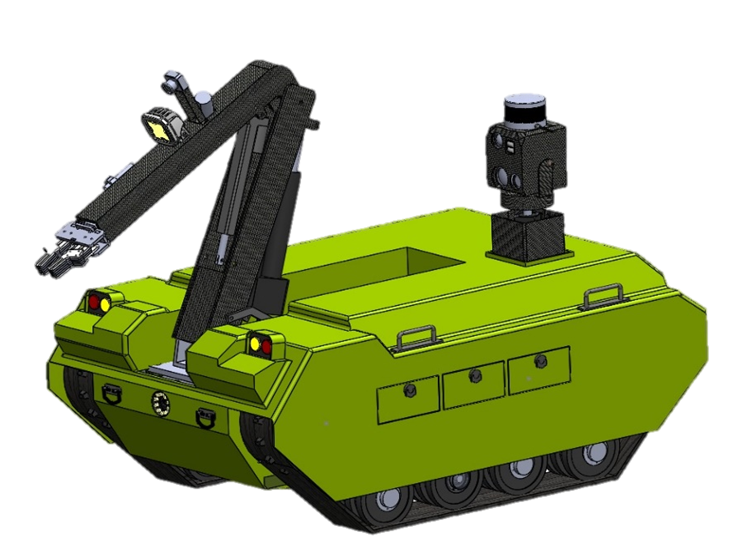

ROOM INTERVENTION ROBOT
SPECIFICATIONS
Dimensions
Weight: 150 KG
Width: 34 INCH
Length: 48 INCH
Sensors
Day Night Cameras
Thermal Camera
Spectrum Analyzer
Ground Penetrating Radar
LIDAR
Communication
Secure WIFI 2.4 GHz
Military COFDM
Maneuverability
Max Speed: 6 Km/h
Climbing Slope: 45 Degrees
Slide Slope: 30 Degrees
Stair Obstacle Climb: 6 Inch
Reliability
1 year limited warranty
Environmental: IP65
Operation
Lead Acid Rechargeable Batteries
Lithium Ion Rechargeable Batteries Interchangeable
2 – 5 Hours – Mission Dependent
Full Charging time: 3 Hours
Accessories
Robotic Arm
Advanced Surveillance
Payload
150 kg
User Interface
Touch Pad, RC Controllers
Operation Modes
Autonomous Mode
Follow Me Mode
Manual Mode
MULTI ROLE DRONE
Interconnected, co operative drones that are capable of working together to overwhelm challenging tasks.
Loud speaker based communication will ensure that any particular information that needs to be conveyed is being able to conveyed without putting soldiers at any unnecessary risk.
125,000 lumen area illumination enables that the drone will be able to illuminate certain areas providing selective illumination and the chance of surprise attack.
Long distance thermal camera integration ensures rigorous scanning of the environment for detection of
Full autonomous motion ensures mission completion even under jamming and other non line of sight communication.
Full 360 degrees coverage independent vibration damped imagery with zoom capability to ensure surveillance and tracking of target.
High precision landing and take off to ensure take off and landing from top of a vehicle and mobile drone take off and landing platforms.
High precision AI enabled system to ensure detection and tracking of suspicious activities.
APPLICATIONS INCLUDE
- Targeted Impact
- Coordinated Activity
- Multiple Coordination
ARM | Drone Take off & Landing | Gun Systems

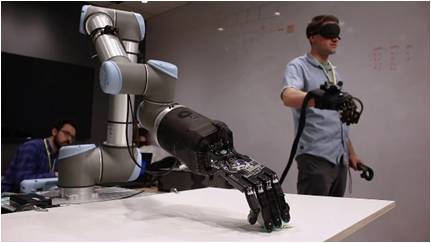

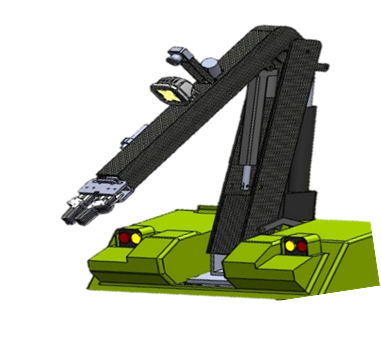

Remote operation of robotic arm, which is securely mounted on the ATV (All Terrain Vehicle) provides improved operational features of vehicle in remote areas which can be hazardous to the troop.
- Fire
- Collapsed building
- Heavy lifting
- Obstacle removal
- Hazardous material handling
- Room Intervention

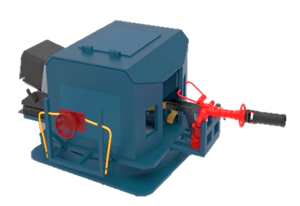

Remote operated gun mounted turret can be used to move aim in a specified direction without intervention of a manpower. Eliminating the risk and casualty the remote operated turret can be used in various dynamic scenarios.
- City Riots
- Fire
- Field Intervention
SPECIFICATIONS
Robotic arm specification
Weight: 25 kg
Arm length: 115 cm
Lifting: 80 kg
Communication: Encrypted
Range: 10 Km LOS
Turret specification
Tilt: 70 degrees
Rotation: 360 degrees
Angular speed: 23 RPM
Range: 5 Km LOS

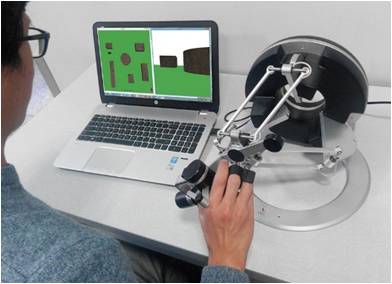

Remote controller
Frequency: 2.4 GHz - 5.8 GHz
Batteries: Rechargeable
Communication: Encrypted
Range: 5 Km LOS
