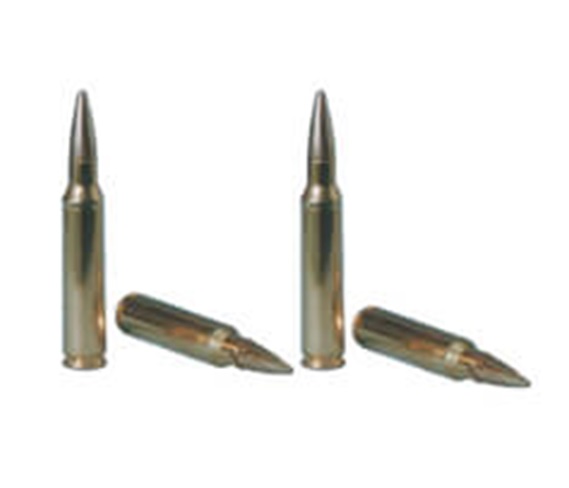

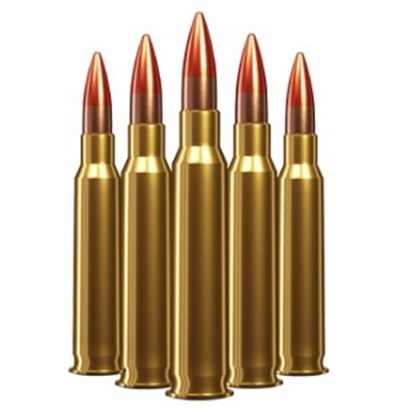

The Cartridge 5.56 mm Ball Mk N is equivalent to 5.56 mm NATO (SS 109) ammunition and are suitable for 5.56 mm standard weapon for firing, which can use 5.56 mm NATO Ammunition or INSAS Ammunition.

CARTRIDGE Calibre 5.56 x 45 mm

CARTRIDGE Length 57.4 x 0.6 mm

CASE Type Rimless, Brass 70:30, Bottle Necked, Boxer

CASE Length 45.0 mm

BULLET Type Guilding Metal envelope FMJ, Steel Insert and Lead core

BULLET Mass 4.0 gm

PROPELLANT Ball Powder Double Base (NG & NC)

PRIMER Lead Styphnate base, Boxer type

Pressure (Radial) 342 Mpa( Avg ) 356 Mpa (Max)

Velocity at 25 m from standard test barrel 910 +- 10 m/s.

Consistency Mean Figure of Merit at 457 m from standard test barrel16.5 cm or less

Penetration at 700 mtrs 90% of rounds shall penetrate 3.45 mm NATO

standard MS Plate to hardness 95-123 VPN

Action time (Hang Fire) 0.003 second max

Extreme Temperature range -54 to +52 deg C

shelf life 15 Years

20 Cartgs . are packed in a paper Carton and 40 such cartons in one H2A Box, hermetically sealed.

The Cartridge 5.56 mm Ball Mk M is equivalent to 5.56 mm NATO (M193) ammunition and are suitable for 5.56 mm standard weapon for firing, which can use 5.56 mm NATO Ammunition or INSAS Ammunition.

CARTRIDGE Calibre 5.56 x 45 mm

CARTRIDGE Length 57.4 x 0.6 mm

CASE Type Rimless, Brass 70:30, Bottle Necked, Boxer

CASE Length 45.0 mm

BULLET Type Guilding Metal envelope FMJ, Steel Insert and Lead core

BULLET Mass 3.56 GRAM

PROPELLANT Ball Powder Double Base (NG & NC)

PRIMER Lead Styphnate base, Boxer type

BULLET WEIGHT 3.56 gm

BULLET TYPE Ball

Muzzle velocity at 78feet ( 24 meters )* 964 M/S

Muzzle energy at 78feet ( 24 meters )* 1656 Joules

Maximum average Pressure: 3660 KG/CM2

Maximum average + 3sd Pressure: 4080 KG/CM2

shelf life 12 Years

20 Cartgs . are packed in a paper Carton and 40 such cartons in one H2A Box, hermetically sealed. Box H2A Size- 311 X 156 X 194 mm

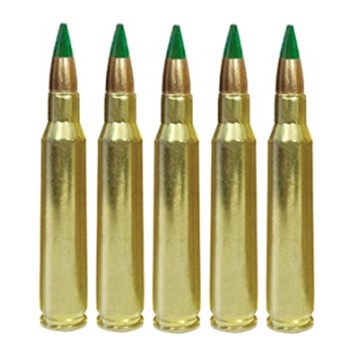

Cartridge (INSAS) 5.56mm Tracer Ammn is used for location of target/ trajectory, incendiary effect and signalling and is fired from;

• Semi-automatic INSAS Rifle
• INSAS LMG.

CARTRIDGE Calibre 5.56 x 45 mm

CARTRIDGE Mass 13.00 gm

CARTRIDGE Length 60.00 mm

CASE Type Rimless, Brass 70:30, Bottle Necked, Boxer

CASE Mass 6.5 gm (Min.)

CASE Length 45.0 mm

BULLET Type Guilding Metal envelope FMJ, Pyro composition & lead core

BULLET Mass 4.4 gm

BULLET Length 28.8 mm

PROPELLANT Type Ball Powder

PROPELLANT Mass 1.60 gm

PRIMER Type Boxer

PRIMER Mass of Comp 0.025 gm

Pressure Average 330 Mpa (Max)

Mean Velocity from 558 mm Barrel at 25 m from muzzle 865 m/s.

Consistency (Mean Figure of Merit at 457 m) not exceeding 33.0 cm

Extreme temperature performance -52 to +72 deg C

shelf life 18 years

Matching of trajectory at 457 m not exceeding 33.0 cm

Tracing Characteristics Up to 13m-dimzone 125m-700m bright crimson red trace

20 Cartgs. are packed in one Carton and 40 such cartons in one H2 A Box,hermetically sealed. One carrier size (6 A/L) contains 4 H2A boxes.Box H2A size – 311 x 156 x 194 mmCarrier 6 A/L size – 667 x 327 x 205 mm

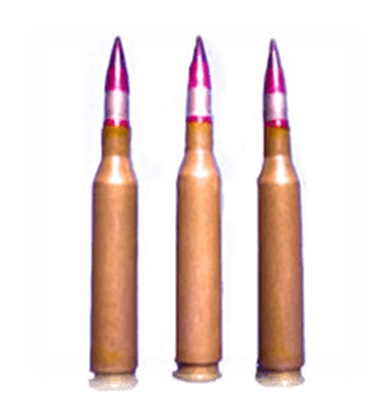

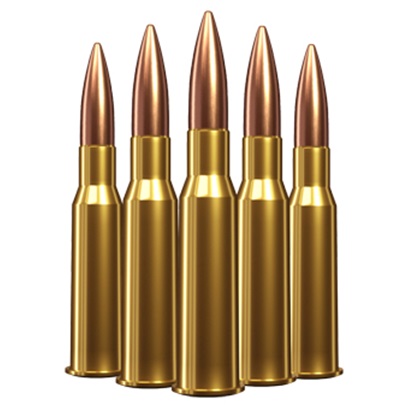

The 7.62 × 54 MM R Steel Core is a rimmed rifle cartridge. The 7.62 × 54mmR is the one of the oldest cartridge still in regular combat service with several major armed forces in the world. The exterior shape of the case was designed to promote reliable case feeding and extraction in bolt-action rifles and machine guns alike, under challenging conditions.

CatridgeCalibre 7.62 mm

Mass fo the Catridge 25.40 gm

Case Rimmed Brass Bottle necked Boxer

Bullet Guilding metal envelop steel insert and lead core

Projectile Mass 9.06 gm

Propellant Ball Powder

Shelf Life 18 Years

Muzzel Velocity 820 to 835 m/s ( from 25 m from muzzel)

Penetration 3.5 mm steel plate at 400 m

Consistency 15 cm or less at 300 m (R-50)

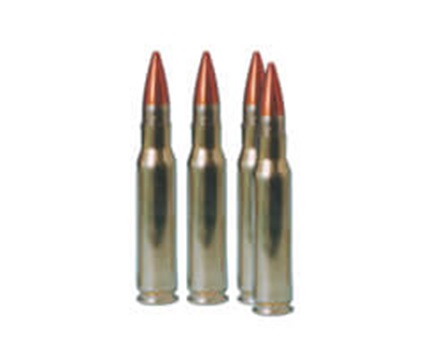

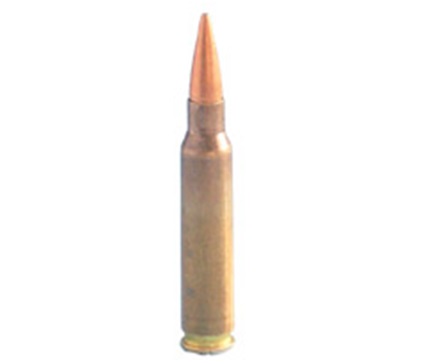

The 7.62 × 51mm NATO Tracer M-62 is a rimless, bottlenecked rifle cartridge. It is a standard for small arms among NATO countries. This tracer Ammunition helps gunner during firing engagements giving full trace of trajectory.

Catridge Caliber 7.62 mm

Mass 25.08

Case type Rimless Bottle necked and Boxer

Bullet Guilding Metal envelop lead core

Propellant Ball Powder

Primer Boxe

Shelf Life 10 Years

Muzzel Velocity 817+- 9 m/sec (23.8 m from muzzle)

consistency Max 38 cm at 550

Tracing Characteristics upto 13.7 m dimzone 91.4 m-777.2 m bright crimson red trace

serving temperature -40 to +52 deg C

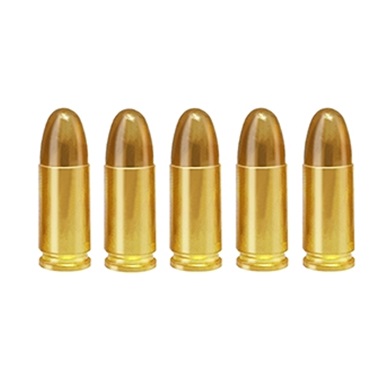

These cartridges are of rimless type and are used with 9 mm pistol or 9 mm Machine Carbine Sten. This cartridge consists of cartridge case, percussion cap, propellant charge and a bullet. This case is of solid drawn brass. At the base of case, a cap chamber with an anvil and two fire holes are formed. A groove is provided on the case for easy extraction of the fired case. The cap is filled with VH2/E1 composition. The cap is secured in the cap chamber and annulus of cap is lacquered to seal the cap and the cap chamber. The bullet is round nosed and consists of Lead-antimony core in an envelope of gilding metal. The cartridge case is tightly coned on to it.The ammunition is optimized to penetrate body armor.. It is widely considered the most popular handgun and submachine gun cartridge due to its low cost and extensive availability.

Cartrdige Caliber 9 mm

Case Rimless type

Bullet Guiding Metal envelope Lead core

Self life 7 Years

Muzzel Velocity 397 +- 15 m/sec

Consistency 75.2 mm Mean FoM at 45 m

Chamber pressure Avg. 201 Mpa Max

35 cartgs. are packed in carton 23 A and such 32 cartons are packed in a H2A box (steel).

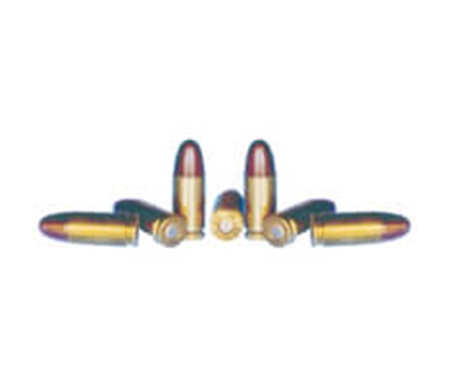

These cartridges are of rimless type and are used with 9 mm pistol or 9 mm Machine Carbine Sten. This cartridge consists of cartridge case, percussion cap, propellant charge and a bullet. This case is of solid drawn brass. At the base of case, a cap chamber with an anvil and two fire holes are formed. A groove is provided on the case for easy extraction of the fired case. The cap is filled with VH2/E1 composition. The cap is secured in the cap chamber and annulus of cap is lacquered to seal the cap and the cap chamber. The bullet is round nosed and consists of Lead-antimony core in an envelope of gilding metal. The cartridge case is tightly coned on to it.The ammunition is optimized to penetrate body armor.. It is widely considered the most popular handgun and submachine gun cartridge due to its low cost and extensive availability.

Cartrdige Caliber 9 mm

Case Rimless Brass 70:30

Bullet Guiding Metal envelope Lead core

Propellent NC 688

Primer Berdan with VH2/E1 composition

Self life 7 Years

Consistency 75.2 mm Mean FoM at 45 m

Chamber pressure Avg. 201 Mpa Max

These cartridges are of rimless type and are used with 9 mm pistol or 9 mm Machine Carbine Sten. This cartridge consists of cartridge case, percussion cap, propellant charge and a bullet. This case is of solid drawn brass. At the base of case, a cap chamber with an anvil and two fire holes are formed. A groove is provided on the case for easy extraction of the fired case. The cap is filled with VH2/E1 composition. The cap is secured in the cap chamber and annulus of cap is lacquered to seal the cap and the cap chamber. The bullet is round nosed and consists of Lead-antimony core in an envelope of gilding metal. The cartridge case is tightly coned on to it.

Total length of Ammunition H-29.69 mm

Total mass of Ammunition L-28.91 mm

Bullet Guiding Metal envelope Lead core

Explosive filling in case 9.96 mm

Cap Composition 0.450 g (approx) propellant SPA-2 or propellant NC-688

Mean velocity at 18 m. from muzzle 397 -+ 15m/s

Accuracy 75.2 mm Mean Figure of Merit at 45 m

Pressure Mean 201 Mpa Individual 215 Mpa No single round should exceed 216 Mpa.

shelf life 7 years

35 cartgs. are packed in carton 23 A and such 32 cartons are packed in a H2A box (steel)

Overall dimensions Box H2A

Length (approx. ) – 311 mm

Width (approx. ) – 156 mm

Height (approx. ) – 194 mm and such four boxes are packed in steel carrier 6A/L.

This is a machine gun ammunition of Russian origin. The complet round, resembling and ordinary SAA cartridge, is of rimless type. The Ammunition is fired from a KPBT Machine Gun which is mounted on Armoured Personnel Carrier SKOT and 6TP – 60A6 both of USSR origin. These AP carriers are amphibious wheeled vehicles designed for infantry transportation. They are armed with one Gun Machine KPBT (using 14.5mm Ammunition) and one Gun Machine PKT (using 7.62 mm ammunition) both mounted on the turret of the carrier. Complete round consists of Cartridge Case, Primer KB-25 propellant charge and projectile.

The 14.5 mm ammunition fired against:

• Armoured cars, trucks and inflammable targets.
• On groups of personnel and motorized infantry unit.

The ammunition is of two types:

• Cartridge SA 14.5 mm. b 3 Trc (AP/I Tracer)
• Cartridge Sa 14.5 mm 6 32rc (AP/I)
• On targets such as men, snipers, emplacements etc. when they are beyond the range of PKT machine gun.

Mass of complete round 187± 3 gm

Length 154.5 - 155.89 mm

Mass of Projectile 59.3 to 61.3 gms.

Chargemass 30.650 gms

Velocity 995 - 1025 m/s

Penetration Penetrated 40 mm armour plate at 91.00 m at normal angle.

Incendiary functioning Satisfactory functioning at a distance of 137 m against 9 mm mild steel plate at 60 degree angle.

Accuracy 43.5 cm (Mean figure of merit at 547.0 m)

Tracer Dark ignition. Reddish trace. Traced up to 1645m.

Pressure 3300 - 3500 Kg/cm2

Consistency 20 cm

Shelf life 10 years

60 rounds are to bepacked into a H2A Steel Box.Packing Box size – 311 x 156 x 196 mmGross Weight – 15.2 Kg (approx..)New Weight – 11.22 Kg

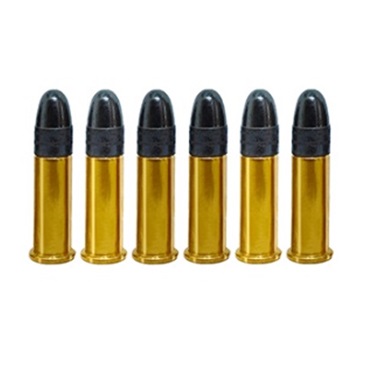

Cartridge 0.22” Ball ( Long Range ) is a long-established variety of .22 caliber rimfire ammunition. Ammunition produced in .22 Long Rifle is effective at short ranges has little recoil and economic to purchase thus making it ideal for training, recreational shooting, small-game hunting and among others.

Cartrdige Caliber 0.22''

Cartrdige Length 25 mm approx

Cartrdige Length 25 mm approx

Case Rimless Brass 70:30 Bottle Necked

Bullet Guiding Metal envelope Lead Core

Propellent 3N 36

Primer RIM FIRED

Projectile Weight 2.6 gm

Self life 10 Years

Consistency Min 95 % within 3/4'' dia( 19 mm ) circle Mean Figure of Merit at 23 m.

Chamber Pressure 22 Mpa Maximum

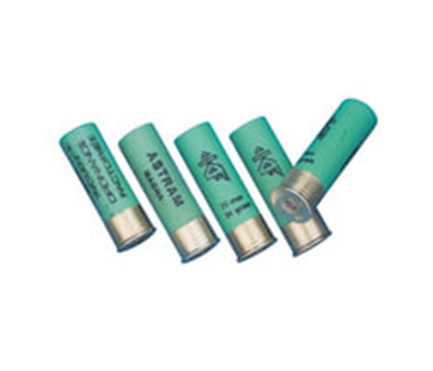

This ammunition is fired from a 70 mm Chamber 12 Bore Gun. This cartridge is an improvement on our existing popular brand “Special” Paper cartridges in so far as their construction and performance characteristics are concerned. The body is made up of high density polyethylene plastic tubes, bi-axially oriented, to withstand higher pressures and achieve higher velocity in place of paper crimson. The use of LDPE Power Piston with pouch in place of paper air-cushion as used in “Special” cartridges, not only provides better gas sealing but also results in achievement of higher accuracy in firing giving a very good pattern of shots. The cartridges use non-corrosive caps along with tubular anvils which eliminates occurrence of misfires. The use of smokeless propellant power give no smoke after firing and the use of hardened lead shots give a good impact on the target. The above improved characteristics make these cartridges suitable not only for use in general hunting, etc. but also for “competition shooting”. Our “Astram” cartridges have already found great favour with many renowned shooters in the competition shooting games.

Total length of finished ammunition after filling 58 mm

Total length of empty case 70 mm

Total mass of the ammunition 47 g

Composition of the primer A1 mixture

Charge mass of the composition 23 to 29 mg

Type of propellant smokeless

Charge mass of the propellant 1.7 to 1.9 g

Mass of the projectile (lead shots) 32 g

Type of lead shots Chilled

Hardness of lead shots 15 to18 VPN

Range of shot size presently manufactured From Biggest no.1

Velocity 350 -+15.2 m/s at 9 m

Accuracy (Accuracy of hit of Pellets within 76.2 cm circle on target placed at 27.4 m distance from the muzzle.) with choke barrel 90% Cylinder without choke barrel 56%

Pressure (Maximum permissible) 3.5 TSI/ 54.0 Mpa

shelf life Maximum 5 years

Cartridges are packed in multi-coloured and attractive laminated cartons. 25 cartridges are packed in one carton. A lot of 20 cartons holding 500 cartridges or a lot of 10 cartons holding 250 cartridges are first put in polythene bags and then heat sealed to avoid ingress of moisture. These polythene bags with 50 or 25 cartons are then packed in wooden boxes or pre-printed corrugated fibre board boxes respectively and duly strapped with steel or plastic tapes. The packing is quite secure and lasting.

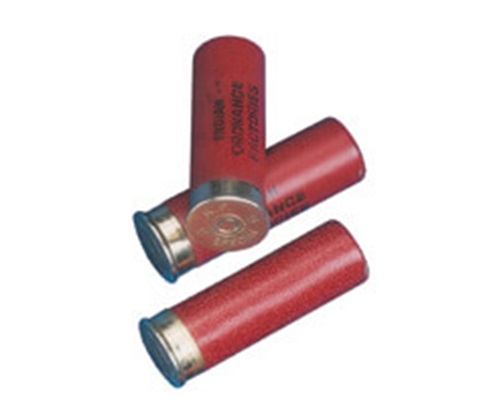

The ammunition can be fired from Pump Action / 70mm / 65mm Chamber 12 Bore Gun . It is used for riot control through use of a rubber projectile.

Total length of finished ammunition after filling 64 mm

Total length of empty case 70 mm

Total mass of the ammunition 24 g

Composition of the primer A1 Mixture

Charge mass of the composition 23 to 29 mg

Type of propellant smokeless

Charge mass of the propellant 1.2 to 1.4 g

Mass of the projectile 10.4 ± 0.02 g

Length of Projectile 35 ± 0.02 mm

Velocity at 9m from the muzzle 265 ± 15 m/s

Energy imparts at 50 m 80 Joule

Pressure 2.5 TSI at 1 inch

Accuracy 100% shots should hit on the target 1.5 m x 1.5 m at a distance 27.4 m from the muzzle

shelf life Maximum 5 years

Cartridges are packed in multi-coloured and attractive laminated cartons. 25 cartridges are packed in one carton. A lot of 20 cartons holding 500 cartridges or a lot of 10 cartons holding 250 cartridges are first put in polythene bags and then heat sealed to avoid ingress of moisture. These polythene bags with 50 or 25 cartons are then packed in wooden boxes or pre-printed corrugated fibre board boxes respectively and duly strapped with steel or plastic tapes. The packing is quite secure and lasting.

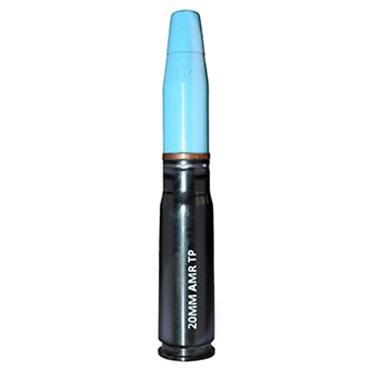

Catridg20 mm AMR TP is used in Anti Material Rifle (AMR) weapon. It is used for Training and Practice Purposes.

Extraction of Projectile 4.0 to 9.0 KN

Mass of Projectile 110 +- 3 gm

Weight of complete Round 206 +- 6 gm

Length of the Round 146.6 +- 1.0 mm

Muzzel Velocity 720 +- 20 m/s

Pressure 275 Mpa

Range 1500 metres

Weight of round 210 +- 3 kg

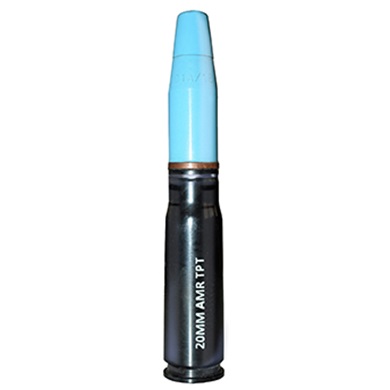

Catridg20 mm AMR TP is used in Anti Material Rifle (AMR) weapon. It is designed to provide tracing capabilities to the Anti Material Rifle (AMR) weaponry. The Tracer gives visiblity of trajectory.

Extraction of Projectile 4.0 to 9.0 KN

Mass of Projectile 110 +- 3 gm

Weight of complete Round 206 +- 6 gm

Length of the Round 146.6 +- 1.0 mm

Muzzel Velocity 720 +- 20 m/s

Pressure 275 Mpa

Range 1500 metres

Weight of round 210 +- 3 kg

Tracer timing > 2 sec

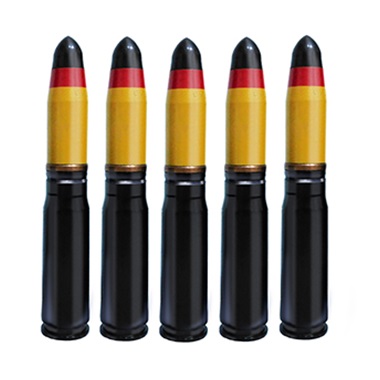

Catridge 20 mm AMR SAPHEI is used in Anti Material Rifle (AMR) weapon. It is used against high value targets at extended ranges which include vRadar installations communication equipments parked aircraft and fuel storage facilities. This Ammunition has mechanical impact fuze( Basesfuze ).

Extraction of Projectile 4.0 to 9.0 KN

Mass of Projectile 104.5 +- 5 gm

Weight of complete Round 200 +- 10 gm

Length of the Round 146.6+- 1.0 mm

Muzzel Velocity 720 +- 20 m/s

Pressure 275 Mpa

Range 1500 metres

Arming delay > 8 m

Penetration 15 mm Armour plate at 100 m

Weight of round 210+- 3 kg
